2020 Juliana Quincy	2017 Argon 18 Krypton XRoad	2014 Cannondale Women's Synapse Hi-Mod	Serotta Ottrott

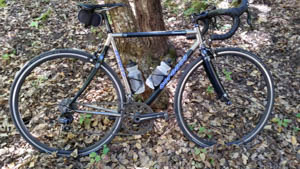

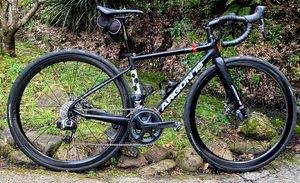

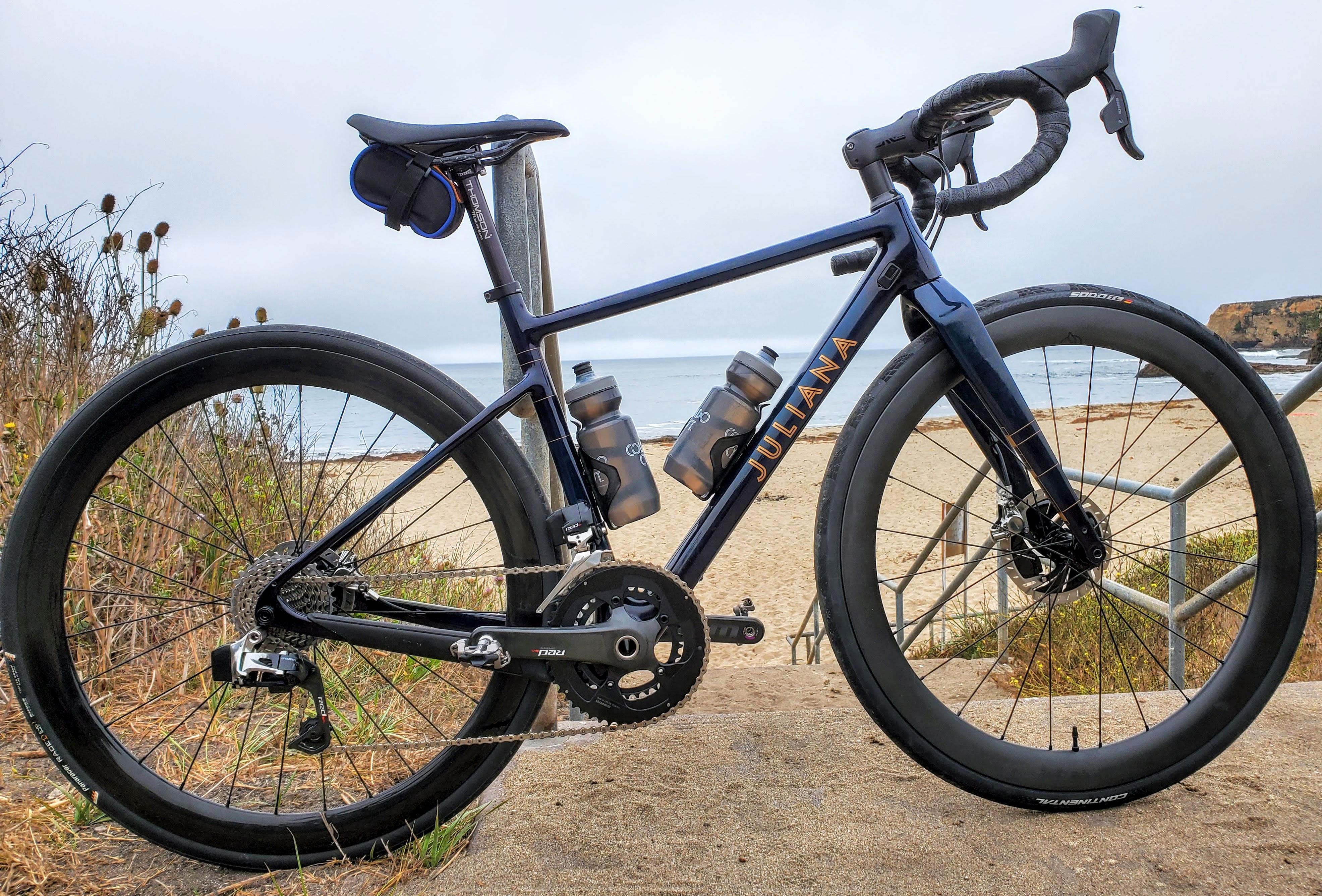

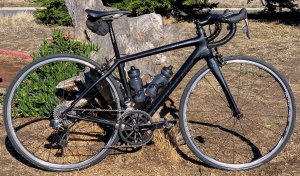

Description	Dana has always had issues with toe overlap, but when I rebuilt her previous bike we realized that the problem was much worse. So in June 2020 I decided to get her something that would reduce the problem. On top of that, she has enjoyed the comfortable ride of wide tires, and this frame will take just about anything that we wanted to put on it.	In October of 2018 I was getting ready to upgrade Dana's gravel bike to her preferred eTap groupset when I realized that it really was not a good fit for her. The top tube was too long and the front end was too short. So I found a deal on this frame that fits her much better and still takes the same wheels and post mount brakes that I had for her.	Since Dana had a strong preference for her Ottrott over her other bikes, I thought it was time to upgrade at least one of them to the same level. Bought this frameset on eBay in January 2015. It was brand new, with manufacturer's warranty. The geometry works really well for her body, and I have high hopes that it will be both very comfortable and perform well.	Picked this frame up used on the Paceline forum in July 2013. We had been fans of Serotta bikes for some time, and the Ottrott was known to have the most refined ride of any Serotta. I don't know much about the frame's history, but it is in good shape and the critical parts of the frame are titanium which should be very durable.
Geometry	Frame Size: 49cm Seat Tube Length: 470mm Horizantal Top Tube: 512mm Head Tube Length: 110mm Wheelbase: 1006mm BB Drop: 74mm Chainstays: 425mm Head Tube Angle: 69.5 degrees Seat Tube Angle: 74.5 degrees Reach: 365mm Stack: 530mm	Frame Size: XX Small Seat Tube Length: 420mm Horizantal Top Tube: 500mm Head Tube Length: 121mm Wheelbase: 971mm BB Drop: 75mm Chainstays: 415mm Head Tube Angle: 70.3 degrees Seat Tube Angle: 75.5 degrees Reach: ?? Stack: ??	Frame Size: 48cm Seat Tube Length: 480mm Horizantal Top Tube: 506mm Head Tube Length: 134mm Wheelbase: 985mm BB Drop: 75mm Chainstays: 410mm Head Tube Angle: 70.6 degrees Seat Tube Angle: 74.9 degrees Reach: 362mm Stack: 533mm	Frame Size: Custom Seat Tube Length: ??mm Horizantal Top Tube: ??mm Head Tube Length: ??mm Wheelbase: ??mm BB Drop: ??mm Chainstays: ??mm Head Tube Angle: ?? degrees Seat Tube Angle: ?? degrees Reach: ?? Stack: ??
Weight	17.87 lbs	17.81 lbs	15.80 lbs	16.90 lbs
Frame	CC Carbon	Monocoque Carbon	BallisTec Hi-MOD Carbon	Titanium and carbon fiber
Fork	Juliana Quincy - 50mm rake	Argon 18 KR36X Carbon Disc	Synapse SAVE PLUS, BallisTec Hi-MOD Carbon, 1-1/8" to 1-1/4" tapered steerer, 55 rake	Serotta F2
Headset	Cane Creek 40 IS 41/28.6 IS 52/40	FSA 37E + 3D 1" 1/4	Cannondale Synapse Si	Chris King - 1.125" blue
Stem	Enve Carbon - 75mm, -6 degrees	Easton EA90 - 80mm, 0 degrees	Easton EA90 - 80mm, 0 degrees, decals removed	Easton EA90 - 80mm, 0 degrees, decals removed
Handlebars	Vision Metron 4D Carbon Compact - 40cm	Vision Metron 4D Carbon Compact - 40cm	Vision Metron 4D Carbon Compact - 40cm	Vision Metron 4D Carbon Compact - 40cm
Bar Tape	Lizard Skin DSP - 3.2mm, black	Lizard Skin DSP - 3.2mm, black	Lizard Skin DSP - 3.2mm, black	Lizard Skin DSP - 3.2mm, black
Brake/Shift Levers	SRAM Force HRD AXS eTap	SRAM Red eTap HRD	SRAM Force AXS eTap	SRAM Red AXS eTap
Brake Calipers	Shimano ForceHRD - Shimano RT-900, Centerlock 160mm	Shimano Red HRD - SRAM Centerline 2-piece, Centerlock 160mm	Shimano Ultegra 8000	SRAM Red Aerolinkk
Buttom Bracket	Chris King Threadfit, blue, BSC	Shimano Dura Ace 9100 BB86 - SM-BB92-41B	FSA BB30A	Chris King Threadfit, black, BSC
Crankset	SRAM Red 22 170mm, Wolf Tooth 44t, GXP	Shimano Ultegra 6800 170mm, 50t x 34t Stages V2 left arm	Cannondale Hollowgram SiSL2 170mm, 44t Stages V2 left arm	Quarq DFour Power Meter 170mm, Absolute Black Cyclocross 42t, GXP
Pedals	Shimano XTR PD-M9000 Race SPD	Shimano XTR PD-M9000 Race SPD	Shimano XTR PD-M9000 Race SPD	Shimano XTR PD-M9000 Race SPD
Front Derailleur	None	SRAM Red eTap	None	None
Rear Derailleur	SRAM Eagle GX	SRAM Red eTap WiFli	SRAM Force AXS XPLR	SRAM Force AXS XPLR
Chain	SRAM PC-XX1 - 12-speed, silver	Shimano Dura Ace 901 w/ Quick Link	SRAM Red Flat Top	SRAM Red Flat Top
Cassette	SRAM Eagle GX - 10/52	Shimano Ultegra 8000 - 11/32	SRAM XG-1271 XPLR - 10/44	SRAM XG-1271 XPLR - 10/44
Wheels	Onyx Vesper, black November All Road 50 rims 24/24 Sapim CX-Ray spokes - black Sapim PolyAx Alloy Nipples - black	White Industries CLD hubs, gun metal Light Bike RR36C02 rims 24/24 Sapim CX-Ray spokes - black Sapim Polyax Alloy nipples - 12mm, black	Bontrager Aeolus Pro 3 TLR	White Industries T11 hubs, black AForce Al3 rims 20/24 Sapim CX-Ray spokes Sapim PolyAx Alloy Nipples - black
Quick Releases	Juliana 12mm/12mm	Enve 2019	Mr Control 6/4 Titanium - black	Mr Control 6/4 Titanium - blue
Tires	Panaracer Gravel King - 38mm	Continental Grand Prix 5000 TL - 32mm	Continental Grand Prix 5000 TL - 28mm	Continental Grand Prix 5000 - 28mm
Seatpost	Easton EC70 Zero Carbon - 27.2x300mm, no offset	Thomson Masterpiece - 31.6x350mm, no offset	Thomson Elite, 25.4x330mm, no offset	Nashbar ZSB Carbon - 27.2x400mm, no offset
Seatpost Clamp	Campagnolo - 31.6mm	Campagnolo - 31.6mm	built into frame	Thomson - 29.8mm, black
Saddle	Specialized Oura Pro Carbon - 155mm, black	Specialized Oura Pro Carbon - 155mm, black	Specialized Oura Pro Carbon - 155mm, black	Specialized Oura Pro Carbon - 155mm, black
Computer	Wahoo Elemnt - Enve V2 Mount	Wahoo Elemnt - K-Edge XL Mount	Wahoo Elemnt - K-Edge XL Mount	Wahoo Elemnt - K-Edge XL Mount
Bottle Cages	Arundel Sideloader/Other Sideloader - oil slick, matte	Arundel Sideloader/Other Sideloader - oil sick, gloss	Arundel Sideloader/Other Sideloader - oil sick, gloss	Arundel Sideloader/Other Sideloader - oil slick, matte
