2017 Argon 18 Krypton XRoad |
2014 Cannondale Women's Synapse Hi-Mod |
Serotta Ottrott |

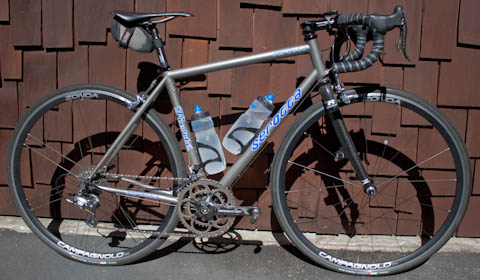

2004 Serotta Fierte |
Description |
In October of 2018 I was getting ready to upgrade Dana's gravel bike to her preferred eTap groupset when I realized that it really was not a good fit for her. The top tube was too long and the front end was too short. So I found a deal on this frame that fits her much better and still takes the same wheels and post mount brakes that I had for her. |
Since Dana had a strong preference for her Ottrott over her other bikes, I thought it was time to upgrade at least one of them to the same level.
Bought this frameset on eBay in January 2015.
It was brand new, with manufacturer's warranty.
The geometry works really well for her body, and I have high hopes that it will be both very comfortable and perform well.
|
Picked this frame up used on the Paceline forum in July 2013. We had been fans of Serotta bikes for some time, and the Ottrott was known to have the most refined ride of any Serotta. I don't know much about the frame's history, but it is in good shape and the critical parts of the frame are titanium which should be very durable. |
Purchased from City Cycles in San Francisco from Clay Mankin.
We went into the process unsure if we were looking for a custom frame or a stock frame.
Dana went through the entire fit process with Clay, rode several bikes, and it was decided that the only acceptable options were to go custom or to get a Serotta with the unique 52S geometry.
Even with the Serotta geometry, we needed to uses some specific components to make the fit work, but it was a lot cheaper than a custom frame.
Sadly, Clay passed away about a year later, and City Cycles disappeared a couple years after that, so we are glad Dana got her session with him.
He was an exceptionally talented fitter, and was wonderful to work with.
|
Picture |
|
|
|
|
Geometry |
Frame Size: XX Small
Seat Tube Length: 420mm
Horizantal Top Tube: 500mm
Head Tube Length: 121mm
Wheelbase: 971mm
BB Drop: 75mm
Chainstays: 415mm
Head Tube Angle: 70.3 degrees
Seat Tube Angle: 75.5 degrees
Reach: ??
Stack: ??
|
Frame Size: 48m
Seat Tube Length: 480mm
Horizantal Top Tube: 506mm
Head Tube Length: 134mm
Wheelbase: 985mm
BB Drop: 75mm
Chainstays: 410mm
Head Tube Angle: 70.6 degrees
Seat Tube Angle: 74.9 degrees
Reach: 362mm
Stack: 533mm
|
Frame Size: Custom
Seat Tube Length: ??mm
Horizantal Top Tube: ??mm
Head Tube Length: ??mm
Wheelbase: ??mm
BB Drop: ??mm
Chainstays: ??mm
Head Tube Angle: ?? degrees
Seat Tube Angle: ?? degrees
Reach: ??
Stack: ??
|
Frame Size: 52S
Seat Tube Length: 460mm
Horizantal Top Tube: 505mm
Head Tube Length: 135mm
Wheelbase: ??
BB Drop: 80mm
Chainstays: 417.5mm
Head Tube Angle: 72 degrees
Seat Tube Angle: 74 degrees
Reach: ??
Stack: ??
|
Weight |
?? lbs |
14.92 lbs |
16.90 lbs |
16.77 lbs |
Frame |
Monocoque Carbon |
BallisTec Hi-MOD Carbon |
Titanium and carbon fiber |
3.25 Titanium |
Fork |
Argon 18 KR36X Carbon Disc |
Synapse SAVE PLUS, BallisTec Hi-MOD Carbon, 1-1/8" to 1-1/4" tapered steerer, 55 rake |
Serotta F2 |
Seven Carbon - 50mm rake |
Headset |
FSA 37E + 3D 1" 1/4 |
Cannondale Synapse Si |
Chris King - 1.125" blue |
Chris King - 1.125" black |
Stem |
Easton EA90 - 80mm, 0 degrees |
Easton EA90 - 80mm, 0 degrees, decals removed |
Easton EA90 - 80mm, 0 degrees, decals removed |
Enve Carbon - 90mm, -6 degrees |
Handlebars |
Vision Metron 4D Carbon Compact - 40cm |
Vision Metron 4D Carbon Compact - 40cm |
Vision Metron 4D Carbon Compact - 40cm |
Vision Metron 4D Carbon Compact - 40cm |
Bar Tape |
Lizard Skin DSP - 3.2mm, black |
Lizard Skin DSP - 3.2mm, black |
Lizard Skin DSP - 3.2mm, black |
Lizard Skin DSP - 3.2mm, black |
Brake/Shift Levers |
SRAM Red eTap HRD |
SRAM Red eTap |
SRAM Red eTap |
SRAM Red eTap |
Brake Calipers |
Shimano Red HRD - Campagnolo H11 AFS 160mm Rotors |
Shimano Ultegra 8000 |
eeBrakes - black |
SRAM Red Aerolink |
Buttom Bracket |
Shimano Dura Ace 9100 BB86 - SM-BB92-41B |
FSA BB30A |
Chris King Threadfit, black, BSC |
Chris King Threadfit, blue, BSC |
Crankset |
Shimano Ultegra 6800 170mm, 50t x 34t Stages V2 left arm |
Cannondale Hollowgram SiSL2 170mm, 50t x 34t Stages V2 left arm |
Quarq DFour Power Meter 170mm, Dura Ace 9000 50t x 34t, GXP |
SRAM/Quarq Red Power Meter 170mm, 50t x 34t, GXP |
Pedals |
Shimano XTR PD-M9000 Race SPD |
Shimano XTR PD-M9000 Race SPD |
Shimano XTR PD-M9000 Race SPD |
Shimano XTR PD-M9000 Race SPD |
Front Derailleur |
SRAM Red eTap |
SRAM Red eTap |
SRAM Red eTap |
SRAM Red eTap w/ Parlee 31.8mm Adapter |
Rear Derailleur |
SRAM Red eTap WiFli |
SRAM Red eTap WiFli |
SRAM Red eTap WiFli |
SRAM Red eTap WiFli |
Chain |
Shimano Dura Ace 901 w/ Quick Link |
SRAM PC Red 22 |
Shimano Ultegra 6800 |
Shimano Dura Ace 901 w/ Quick Link |
Cassette |
Shimano Ultegra 8000 - 11/32 |
SRAM Red 22 XG-1190-A2 - 11/32 |
Shimano Ultegra 6800 - 11/32 |
Shimano Ultegra 8000 - 11/32 |
Wheels |
White Industries CLD hubs, gun metal
Light Bike RR36C02 rims
24 Sapim CX-Ray spokes - black
Sapim Polyax Alloy nipples - 12mm, black |
Bontrager Aeolus Pro 3 TLR |
Shimano Dura Ace 9000 C24 |
White Industries T11 hubs, black
Aforce Al33 MSW rims
20/24 Sapim CX-Ray spokes - black
Sapim PolyAx Alloy Nipples - black
|
Quick Releases |
Enve 2019 |
Mr Control 6/4 Titanium - black |
Mr Control 6/4 Titanium - blue |
Enve- black |
Tires |
Continental Grand Prix 5000 TL - 32mm |
Continental Grand Prix 5000 TL - 28mm |
Continental GP4000 - 23mm |
Continental Grand Prix 5000 - 28mm |
Seatpost |
Thomson Masterpiece - 31.6x350mm, no offset |
Thomson Elite, 25.4x330mm, no offset |
Nashbar ZSB Carbon - 27.2x400mm, no offset |
Easton EC70 Zero Carbon - 27.2x300mm, no offset |
Seatpost Clamp |
Campagnolo - 31.6mm |
built into frame |
Thomson - 29.8mm, black |
Campagnolo - 31.6mm |
Saddle |
Specialized Oura Pro Carbon - 155mm, black |
Specialized Oura Pro Carbon - 155mm, black |
Specialized Oura Pro Carbon - 155mm, black |
Specialized Oura Expert Ti- 155mm, black |
Computer |
Wahoo Elemnt - K-Edge XL Mount |
Wahoo Elemnt - K-Edge XL Mount |
Wahoo Elemnt - K-Edge XL Mount |
Wahoo Elemnt - Enve V2 Mount |
Bottle Cages |
Arundel Sideloader/Other Sideloader - oil slick, matte |
Arundel Sideloader/Other Sideloader - oil sick, gloss |
Arundel Sideloader/Other Sideloader - oil sick, gloss |
Arundel Sideloader/Other Sideloader - oil slick, matte |
