2015 Niner Jet 9 |
2008 Rocky Mountain Element 70 |
eBay Special |
Description |
In June 2016 I found this frame a price I could not pass up. It provided much more advanced suspension from the Rocky Mountain, and the 29er wheels should roll better.
|
After riding hard tails for many years, Dana had reached a point where having full suspension would help her development as a rider.

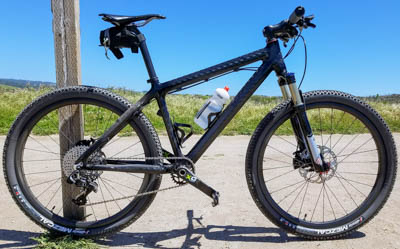

Thus in May 2012, I got a screaming deal on this frame on eBay as new old stock.
Built it up with the parts from her old bike.
|
Dana has become enamoured with the comfort provided by carbon frames.
Since these chinese carbon frames on eBay were getting good reviews, and they were cheap, we decided to build her a new mountain bike in 2010 based on one.
The purchase process was simple, and the frame arrived quickly and in perfect shape.
She loves how it looks and rides.
|
Picture |
|
|
|
Geometry |
Frame Size: XS
Seat Tube (center to top): 391mm
Effective Top Tube: 562mm
Seat Tube Angle: 73 degrees
Head Tube Angle: 70 degrees
Head Tube Length: 100mm
Wheelbase: 1091mm
Chainstay Length: 455mm
BB Drop: 27mm
Reach: 381mm
Stack: 597mm
|
Frame Size: 15 in
Seat Tube (center to top): 381mm
Effective Top Tube: 540mm
Seat Tube Angle: 74 degrees
Head Tube Angle: 70.5 degrees
Head Tube Length: 100mm
Wheelbase: 1047mm
Chainstay Length: 432mm
BB Drop: 20mm
|
Frame Size: 15 in
Seat Tube (center to top): 420mm
Effective Top Tube: 556mm
Seat Tube Angle: 73.5 degrees
Head Tube Angle: 71 degrees
Head Tube Length: 125mm
Wheelbase: 1032.4mm
Chainstay Length: 425mm
|
Weight |
?? lbs |
25.28 lbs |
22.13 lbs |
Frame |
Hydroformed aluminum |
RMB Form 7005 Alu, carbon seatstays |
Monoque Carbon Fiber |
Rear Shock |
Rockshox Monarch RT HV - 7.5 x 2.0 - 100mm travel |
Fox Float RPL, Custom Valved, 100mm travel |
N/A |
Fork |
2014 Factory 32 CTD Fit 120mm - Tapered Headtube |
2007 Fox F100 RL 100mm |
2010 Rock Shox SID Race 100mm |
Headset |
Cane Creek/Niner |
Chris King, black sotto voce |
Necco |
Stem |
Easton Haven - 55mm, 0 degree |
Pro PLC Carbon - 90mm, -7 degrees |
Enve - 90mm, black decals -6 degrees |
Handlebars |
Ritchey WCS Carbon |
Ritchey Comp Alloy |
Easton EC70 |
Grips |
Renthal Lock-On Grips Super Comfort - White |
Ergon GX-1 |
Ergon GE1 Factory |
Brakes |
Shimano XTR M785 silver |
Shimano XTR M985 |
Shimano XTR M785 black |
Rotors |
Shimano RT99, CenterLock 180mm/160mm |
Shimano RT98, CenterLock 160mm/160mm |
Shimano RT86, 6-bolt 180mm/160mm |
Crankset |
Truvativ X0 - 170mm, 30t SRAM Eagle |
Truvativ X9 - 170mm, 36t x 22t |
Truvativ X0 - 170mm, 28t SRAM Steel |
Bottom Bracket |
Chris King PF30 - silver |
SRAM GXP |
Chris King - black |
Pedals |
Wellgo MG1 Ti |
Shimano SPD |
Shimano XT M8000 Race SPD |
Shifters |
SRAM Eagle XO1 |
Shimano XTR M980, i-Spec B, 10x2 |
SRAM X01 - black |
Front Derailleur |
N/A |
Shimano XTR M986, double |
N/A |
Rear Derailleur |
SRAM Eagle XX1 |
Shimano XT M786 - Mid-cage |
SRAM X1 - Type 2.1 |
Chain |
SRAM PC-XX1 - 12 speed black |
KMC X10 EPT - 10-speed |
SRAM PC-XX1 - 11-speed |
Cassette |
SRAM XO1 Eagle - 10/50 |
Shimano XT 771 - 11/36 |
SRAM 1199 - 10/42 |
Wheels |
DT Swiss 350 / White Industries CLD hubs, NOX Teocalli rims 28 black Sapim CX-Ray spokes f/r, black alloy nipples |
Shimano XT WH-M775 |
Reynolds AM Carbon |
Quick Releases |
Fox 15mm front, Shimano XTR rear |
Salsa Suspension |
Salsa Suspension |
Tires |
Front: Maxxis Ardent Race 3C EXO TR - 29 x 2.2 Rear: Geax Mezcal II TNT - 29 x 2.1 |
Front: Continental X King UST Tire - 26 x 2.4 Rear: Maxxis Larsen TT UST 26x2.0 |
Vittoria Mezcal TNT G+ - 26 x 2.1 |
Tubes |
None |
None |
None |
Seatpost |
Fox Transfer Factory - External, 125mm, 30.9mm Fox 1x Underbar Remote |
Ritchey WCS 1-bolt - 27.2mm |
Pedal Force Carbon - 31.6mm |
Seatpost Clamp |
Niner - 35mm |
IRD |
Campagnolo |
Saddle |
Specialized Toupe Ti - 130mm, red/white |
??k |
Specialized Toupe Ti - 130mm, black |
Computer |
Garmin 820 |
Garmin 810 |
Garmin 820 |
Bottle Cages |
Arundel Dave-O |
Blackburn Carbon - red |
Arundel Sideloader/Other Sideloader - oil slick, matte |
